Convenience RGB matrix API built on top of the core async driver. More...

#include <is31fl3733_rgb_matrix.hpp>

Inheritance diagram for IS31FL3733::IS31FL3733RgbMatrix:

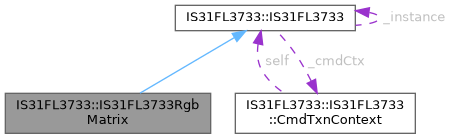

Collaboration diagram for IS31FL3733::IS31FL3733RgbMatrix:

[legend]

Public Member Functions
ColorOrder	GetColorOrder () const
	Get the current color order.

void	SetColorOrder (ColorOrder order)
	Set the color order for RGB pixel mapping.

Constructor
	IS31FL3733RgbMatrix (TwoWire *wire, uint8_t addr=0x50, uint8_t sdbPin=0xFF, uint8_t irqPin=0xFF, ColorOrder order=ColorOrder::GRB)
	Construct RGB matrix helper with same arguments as base driver.

Color Helpers
void	SetPixelColor32 (uint8_t row, uint8_t col, uint32_t packedRgb, bool gamma=false)
	Set a logical RGB pixel from packed 0xRRGGBB value.

void	SetPixelHSV (uint8_t row, uint8_t col, uint16_t hue, uint8_t sat=255, uint8_t val=255, bool gamma=true)
	Set a logical RGB pixel from HSV.

void	FillColor32 (uint32_t packedRgb, bool gamma=false)
	Fill logical matrix with packed RGB color.

void	FillHSV (uint16_t hue, uint8_t sat=255, uint8_t val=255, bool gamma=true)
	Fill logical matrix with HSV color.

Public Member Functions inherited from IS31FL3733::IS31FL3733
	IS31FL3733 (TwoWire *wire, uint8_t addr=0x50, uint8_t sdbPin=0xFF, uint8_t irqPin=0xFF)
	Construct a new IS31FL3733 driver instance.

	~IS31FL3733 ()
	Destroy the driver; calls end() if begin() succeeded.

bool	begin (uint8_t pfs=0, uint8_t pur=0b111, uint8_t pdr=0b111)
	Initialize the device (blocking for initial config).

void	end ()
	RESET device and disable (hardware shutdown). Reads RESET register to trigger software reset, then disables device. Useful for cleanup and testing.

void	DeviceOn ()
	Enable the device (hardware and software startup).

void	DeviceOff ()
	Disable the device (hardware and software shutdown).

void	SetGCC (uint8_t gcc)
	Set global current control register (Page 3 GCC).

void	SetSWPUR (uint8_t pur)
	Set SW pull-up resistor control (Page 3 SWPUR).

void	SetCSPDR (uint8_t pdr)
	Set CS pull-down resistor control (Page 3 CSPDR).

void	SetPFS (uint8_t pfs)
	Set PWM frequency selection bits in CR (PFS[6:5]). Preserves other tracked CR bits (e.g., ABM enable).

void	SetIMR (uint8_t imrMask)
	Set interrupt mask register (Common IMR).

void	SetShortFaultMaskEnabled (bool enable)
	Control whether LEDSHORT bits are applied when computing LEDONOFF mask.

bool	GetShortFaultMaskEnabled () const
	Returns true when LEDSHORT contributes to LEDONOFF masking.

bool	IsPwmUpdatePending () const
	Returns true while PWM row writes are in flight or queued.

void	SetPixelPWM (uint8_t row, uint8_t col, uint8_t pwm)
	Set PWM duty cycle for a single LED (hardware coordinates).

void	SetRowPWM (uint8_t row, const uint8_t *pwmValues)
	Set PWM values for an entire row (hardware coordinates).

void	BeginPwmBatch ()
	Begin a batched PWM update.

void	EndPwmBatch (bool flush=true)
	End a batched PWM update and optionally flush queued rows.

void	SetPixelMode (uint8_t row, uint8_t col, ABMMode mode)
	Set mode for a single LED (hardware coordinates, Page 2).

void	SetRowMode (uint8_t row, ABMMode mode)
	Set mode for an entire row (hardware coordinates, Page 2).

ABMMode	GetPixelMode (uint8_t row, uint8_t col) const
	Get mode for a single LED (hardware coordinates, Page 2).

void	SetPixelColor (uint8_t row, uint8_t col, uint8_t r, uint8_t g, uint8_t b)
	Set RGB color for a logical pixel (with color order mapping).

void	SetPixelColorMode (uint8_t row, uint8_t col, ABMMode mode)
	Set mode for a logical RGB pixel (with color order mapping).

void	SetColorOrder (ColorOrder order)
	Set the color order for RGB pixel mapping.

ColorOrder	GetColorOrder () const
	Get the current color order.

void	Fill (uint8_t pwm=0)
	Fill the entire matrix with a PWM value.

void	SetMatrixMode (ABMMode mode)
	Set mode for the entire matrix (Page 2).

void	SetABMCallback (uint8_t abmNum, std::function< void()> callback)
	Register callback for ABM1/2/3 completion.

void	ConfigureABM (uint8_t abmNumber, const ABMConfig &config)
	Configure ABM timing/loop registers for ABM1/2/3 on Page 3.

void	ConfigureABM1 (const ABMConfig &config)
	Configure ABM-1 control registers (Page 3 ABM1CR..ABM1CR+4).

void	ConfigureABM2 (const ABMConfig &config)
	Configure ABM-2 control registers (Page 3 ABM2CR..ABM2CR+4).

void	ConfigureABM3 (const ABMConfig &config)
	Configure ABM-3 control registers (Page 3 ABM3CR..ABM3CR+4).

void	EnableABM (bool enable=true)
	Enable or disable ABM engine in CR (Page 3).

void	TriggerABM ()
	Latch ABM timing updates by writing TUR on Page 3.

const uint8_t *	GetLEDOpen () const
	Get the cached LED open status (from last fault detection).

const uint8_t *	GetLEDShort () const
	Get the cached LED short status (from last fault detection).

const uint8_t *	GetLEDOn () const
	Get the cached LED on/off mask (last value written to LEDONOFF).

Static Public Member Functions
Validation Helpers
static bool	IsValidRow (uint8_t row)
	Validate a logical RGB row index.

static bool	IsValidCol (uint8_t col)
	Validate a logical RGB column index.

Static Public Attributes
Constants
static constexpr uint8_t	kRows = 4
	Logical RGB matrix row count.

static constexpr uint8_t	kCols = 16
	Logical RGB matrix column count.

Detailed Description

Convenience RGB matrix API built on top of the core async driver.

Inherits all base driver features (begin/end, ABM, raw pixel/mode control) and adds higher-level color helpers for 32-bit packed RGB and HSV.

Definition at line 21 of file is31fl3733_rgb_matrix.hpp.

Constructor & Destructor Documentation

◆ IS31FL3733RgbMatrix()

IS31FL3733::IS31FL3733RgbMatrix::IS31FL3733RgbMatrix	(	TwoWire *	wire,
		uint8_t	addr = `0x50`,
		uint8_t	sdbPin = `0xFF`,
		uint8_t	irqPin = `0xFF`,
		ColorOrder	order = `ColorOrder::GRB`
	)

inline

Construct RGB matrix helper with same arguments as base driver.

Parameters

wire	Pointer to TwoWire I2C interface.
addr	7-bit I2C address (typically 0x50).
sdbPin	Optional SDB (shutdown) pin (active high). Use 0xFF to disable.
irqPin	Optional IRQ pin for open/short detection. Use 0xFF to disable.
order	Initial logical RGB channel order.

Definition at line 39 of file is31fl3733_rgb_matrix.hpp.

        : IS31FL3733(wire, addr, sdbPin, irqPin) {
        SetColorOrder(order);
    }

References SetColorOrder().

Member Function Documentation

◆ FillColor32()

void IS31FL3733::IS31FL3733RgbMatrix::FillColor32	(	uint32_t	packedRgb,
		bool	gamma = `false`
	)

inline

Fill logical matrix with packed RGB color.

Parameters

packedRgb	Packed RGB color (0xRRGGBB).
gamma	If true, applies Gamma32() before writing.

Definition at line 103 of file is31fl3733_rgb_matrix.hpp.

                                                             {
        for (uint8_t row = 1; row <= kRows; row++) {
            for (uint8_t col = 1; col <= kCols; col++) {
                SetPixelColor32(row, col, packedRgb, gamma);
            }
        }
    }

References kCols, kRows, and SetPixelColor32().

Referenced by FillHSV().

◆ FillHSV()

void IS31FL3733::IS31FL3733RgbMatrix::FillHSV	(	uint16_t	hue,
		uint8_t	sat = `255`,
		uint8_t	val = `255`,
		bool	gamma = `true`
	)

inline

Fill logical matrix with HSV color.

Parameters

hue	Hue (0..65535).
sat	Saturation (0..255).
val	Value (0..255).
gamma	If true, applies Gamma32() after HSV conversion.

Definition at line 116 of file is31fl3733_rgb_matrix.hpp.

                                                                                        {
        const uint32_t color = ColorUtils::ColorHSV(hue, sat, val);
        FillColor32(color, gamma);
    }

References FillColor32().

◆ GetColorOrder()

ColorOrder IS31FL3733::IS31FL3733::GetColorOrder ( ) const

inline

Get the current color order.

Returns: Current color order.

Definition at line 439 of file is31fl3733.hpp.

                                     {
        return _colorOrder;
    }

◆ IsValidCol()

static bool IS31FL3733::IS31FL3733RgbMatrix::IsValidCol ( uint8_t col )

inlinestatic

Validate a logical RGB column index.

Parameters

col	Logical column (1..kCols).

Returns: True if column is in range.

Definition at line 61 of file is31fl3733_rgb_matrix.hpp.

                                        {
        return col >= 1 && col <= kCols;
    }

References kCols.

Referenced by SetPixelColor32().

◆ IsValidRow()

static bool IS31FL3733::IS31FL3733RgbMatrix::IsValidRow ( uint8_t row )

inlinestatic

Validate a logical RGB row index.

Parameters

row	Logical row (1..kRows).

Returns: True if row is in range.

Definition at line 54 of file is31fl3733_rgb_matrix.hpp.

                                        {
        return row >= 1 && row <= kRows;
    }

References kRows.

Referenced by SetPixelColor32().

◆ SetColorOrder()

void IS31FL3733::IS31FL3733::SetColorOrder ( ColorOrder order )

inline

Set the color order for RGB pixel mapping.

Parameters

order Color order (RGB, GRB, BRG, RBG, GBR, BGR).

Definition at line 433 of file is31fl3733.hpp.

                                         {
        _colorOrder = order;
    }

Referenced by IS31FL3733RgbMatrix().

◆ SetPixelColor32()

void IS31FL3733::IS31FL3733RgbMatrix::SetPixelColor32	(	uint8_t	row,
		uint8_t	col,
		uint32_t	packedRgb,
		bool	gamma = `false`
	)

inline

Set a logical RGB pixel from packed 0xRRGGBB value.

Parameters

row	Logical row (1..4).
col	Logical column (1..16).
packedRgb	Packed RGB color (0xRRGGBB).
gamma	If true, applies Gamma32() before writing.

Definition at line 73 of file is31fl3733_rgb_matrix.hpp.

                                                                                           {
        if (!IsValidRow(row) || !IsValidCol(col)) {
            return;
        }

        uint32_t color = gamma ? ColorUtils::Gamma32(packedRgb) : packedRgb;

        const uint8_t r = static_cast<uint8_t>((color >> 16) & 0xFF);
        const uint8_t g = static_cast<uint8_t>((color >> 8) & 0xFF);
        const uint8_t b = static_cast<uint8_t>(color & 0xFF);

        IS31FL3733::SetPixelColor(row, col, r, g, b);
    }

References IsValidCol(), IsValidRow(), and IS31FL3733::IS31FL3733::SetPixelColor().

Referenced by FillColor32(), and SetPixelHSV().

◆ SetPixelHSV()

void IS31FL3733::IS31FL3733RgbMatrix::SetPixelHSV	(	uint8_t	row,
		uint8_t	col,
		uint16_t	hue,
		uint8_t	sat = `255`,
		uint8_t	val = `255`,
		bool	gamma = `true`
	)

inline

Set a logical RGB pixel from HSV.

Parameters

row	Logical row (1..4).
col	Logical column (1..16).
hue	Hue (0..65535).
sat	Saturation (0..255).
val	Value (0..255).
gamma	If true, applies Gamma32() after HSV conversion.

Definition at line 94 of file is31fl3733_rgb_matrix.hpp.

                                        {
        uint32_t color = ColorUtils::ColorHSV(hue, sat, val);
        SetPixelColor32(row, col, color, gamma);
    }

References SetPixelColor32().

Member Data Documentation

◆ kCols

constexpr uint8_t IS31FL3733::IS31FL3733RgbMatrix::kCols = 16

staticconstexpr

Logical RGB matrix column count.

Definition at line 28 of file is31fl3733_rgb_matrix.hpp.

Referenced by FillColor32(), and IsValidCol().

◆ kRows

constexpr uint8_t IS31FL3733::IS31FL3733RgbMatrix::kRows = 4

staticconstexpr

Logical RGB matrix row count.

Definition at line 26 of file is31fl3733_rgb_matrix.hpp.

Referenced by FillColor32(), and IsValidRow().

The documentation for this class was generated from the following file:

is31fl3733_rgb_matrix.hpp
